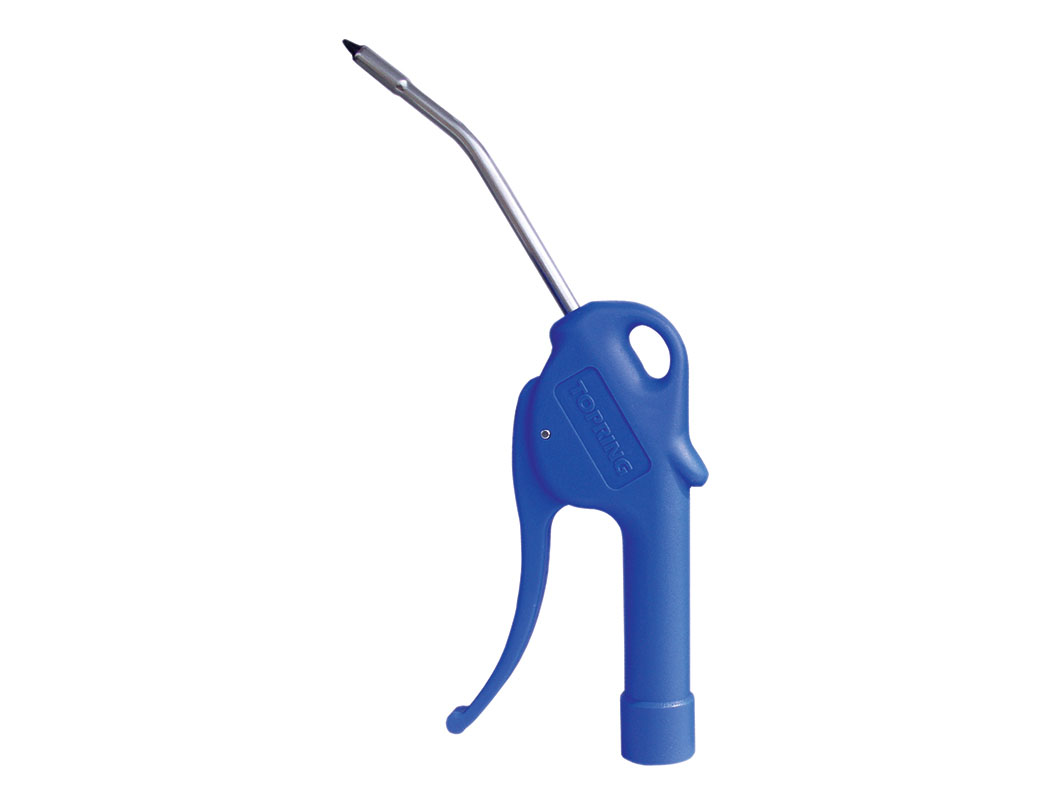

Airpro safety blow gun startip nozzle – 6 mm x 10 cm tube

Technical specifications and certifications

• Blue with 6 mm tube x 10 cm (4″)
• Noise Level at 87 PSI: 76.8 dB
• Air Consumption at 87 PSI: 8.6 SCFM
• Maximum Working Pressure: 174 PSI
• Maximum Output Thrust at 116 PSI: 0.66 lbf
• Working Temperature: -40 to 65 °C
• Connection: 1/4 (F) NPT

Material(s):
• Body: Acetal plastic (POM)
• Nozzle: Plated steel/stainless steel/Aluminum
• Valve: Acetal plastic (POM)
• Springs: Stainless steel
• Seals: Nitrile rubber

Product Description

Features and benefits

• Powerful safety blow gun
• Noise reduction of nearly 20 decibels from conventional blow guns
• If the tip of the nozzle is blocked, the airflow escapes through the holes around the nozzle and the static pressure remains under 30 PSI
• Slim design allows access to narrow spaces
• Corrosion-resistant stainless steel tube model for harsh or agressive environments

Operation and installation

HOW IT WORKS: STARTIP NOZZLE
StarTip nozzle offers a concentrated airflow for maximum efficiency
If the tip of the nozzle is blocked, the air escapes through the side holes and the static pressure remains under 30 PSI

Caution

• Users should never use blow guns to clean themselves
• A vacuum or a safety cleaning unit should be used instead

Applications

• Clearing away chips and shavings, cleaning of parts and machines, blowing, drying and dust removal from parts and work areas.
• For machine and woodworking shops, construction, lumber mills, paper mills, textile mills, foundries, transportation, bakeries and food processing, rubber and plastic manufacturing plants, general cleanup and maintenance
